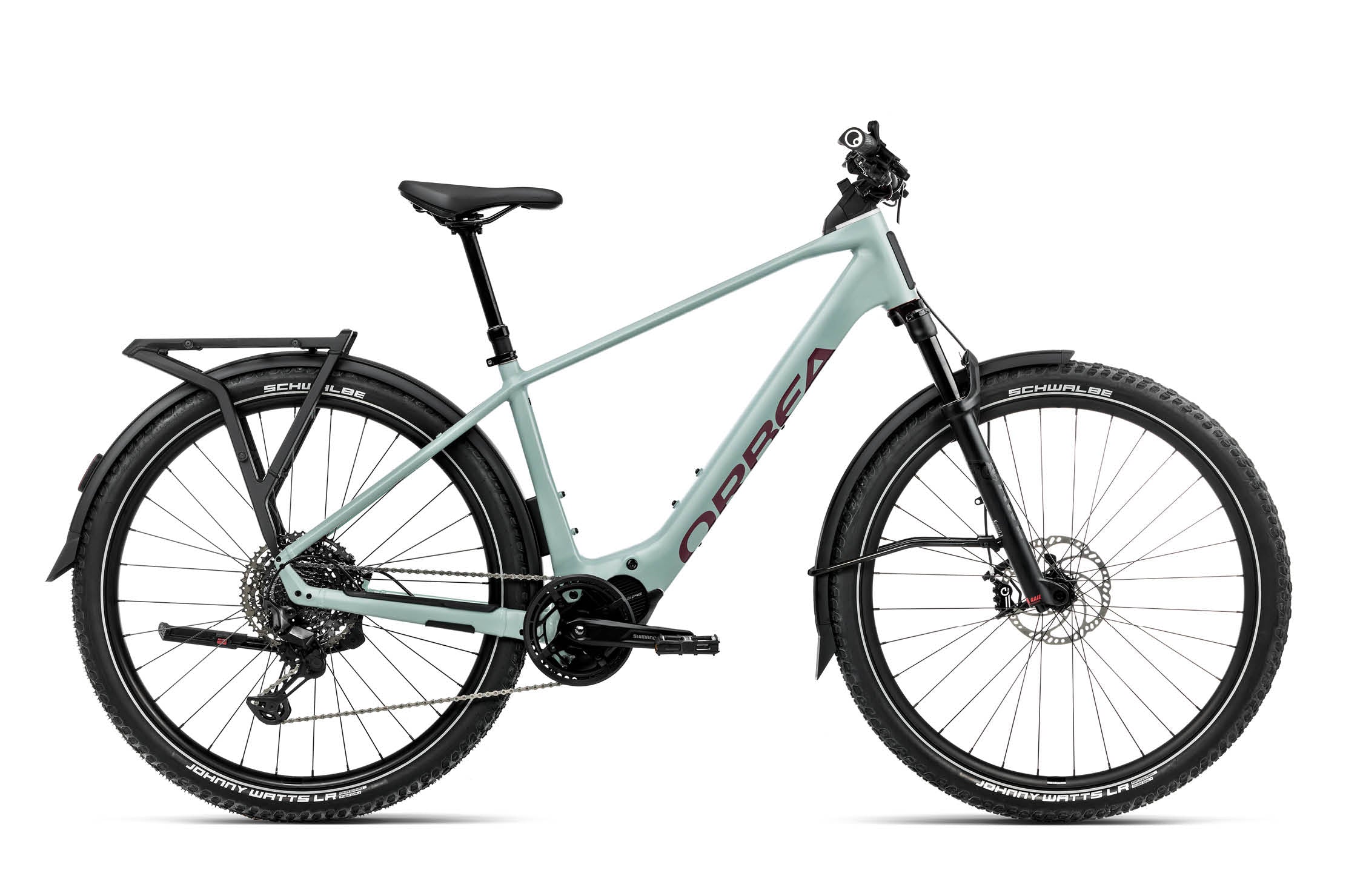

Orbea Kemen Adv 10 EBike 2025
Orbea Kemen Adv 10 EBike 2025
-
The Orbea Kemen Adv 10 eBike is the top-of-the-range model in the Kemen Adventure range. A lighter weight, all-terrain trekking ebike the Kemen Adv 10 is tough, athletic and versatile. It is equipped with Fox 34 forks, Shimano XT 11-speed gearing and allterrain tires and comes fully equipped including smart lighting and a rear rack with 30kg carry capacity. It is powered by the Shimano EP600 motor with 85Nm and has a long-range 630Wh battery.
- Drive System: Shimano EP6 mid-drive 250Wh
- Motor: Shimano EP600 , 85Nm
- Battery: Orbea Internal 630Wh
- Range: Varies. Up to 6 hours.
- Quality: Fox 34 forks, Shimano XT 11-speed, Magura MT5 brakes
- Brand: Orbea
Details
Top-of-the-range lighter weight allterrain tourer. The Orbea Kemen Adv 10 eBike is the top-of-the-range model in the Kemen Adventure range. A lighter weight, all-terrain trekking ebike the Kemen Adv 10 is tough, athletic and versatile. It is equipped with Fox 34 forks, Shimano XT 11-speed gearing and allterrain tires and comes fully equipped including smart lighting and a rear rack with 30kg carry capacity. A beautiful bike to look at with Orbea's flare and attention to detail.
Strong Shimano motor and ultra long-range battery. Orbea use the Shimano EP600 motor which is strong with 85Nm and offers the least resistance of any motor when pedalling without power. The frame houses a large 630Wh high-density battery which offers up to 6 hours of riding.

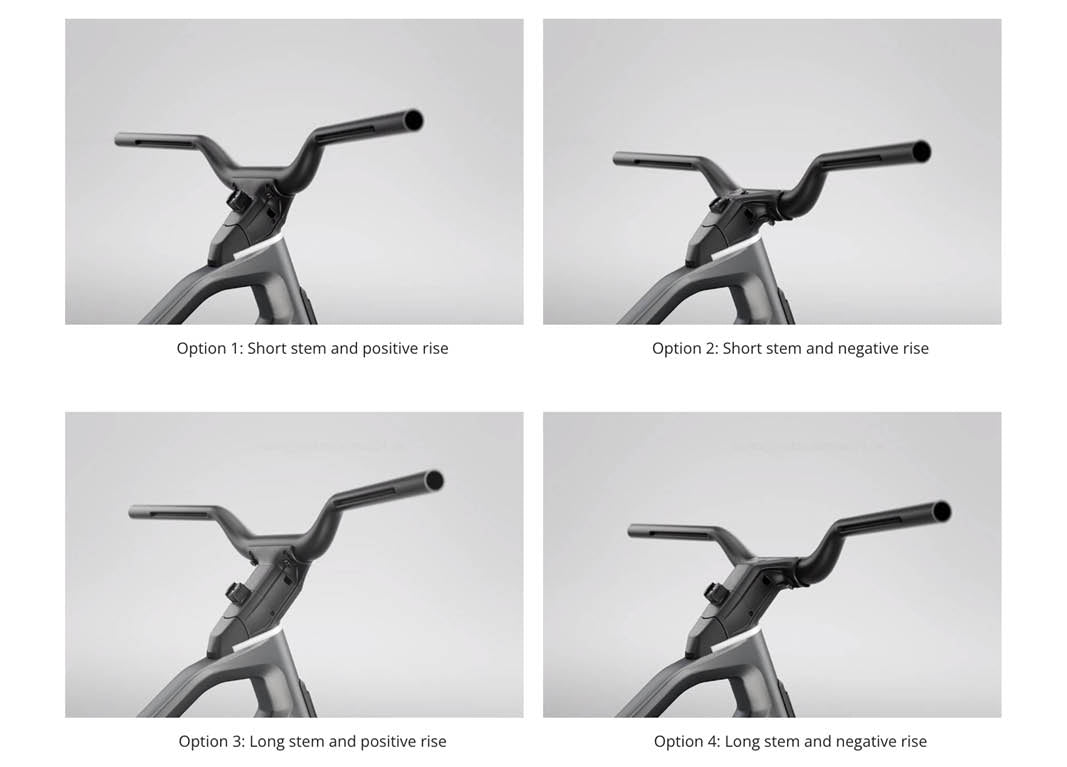

Premium components: durable and high performance. The Orbea Kemen Adv 10 model offers tough, higher-quality components and and has an innovative stem design that offers four alternate ride positions, depending on your preference. It runs on Shimano XT 11 speed gearing with linkglide, a Fox 34 Float AWL suspension fork with 100 mm travel and strong Magura MT5 brakes. In addition, the Kemen 10 has a dropper seatpost, 2.35" knobbly tires and a rear rack reinforced to carry up to 30kg. It comes fully equipped and also features a smart lighting system that automatically turns on when it gets dark.
Contact us to order and for info on available sizes and colours. Also available in a mid-frame version. See the Kemen Adv 20 if you want a more economical 11-speed / 630Wh option with Suntour forks and fixed seatpost. See the Kemen Tour 10 if you prefer a more onroad version.
| System | Shimano EP6 mid-drive 250Wh |
|---|---|
| Motor | Shimano EP600, 85Nm |
| Battery |
Orbea Internal 630Wh |
| Range | Varies. Up to 6 hours |
| Display |
Shimano EN600 |

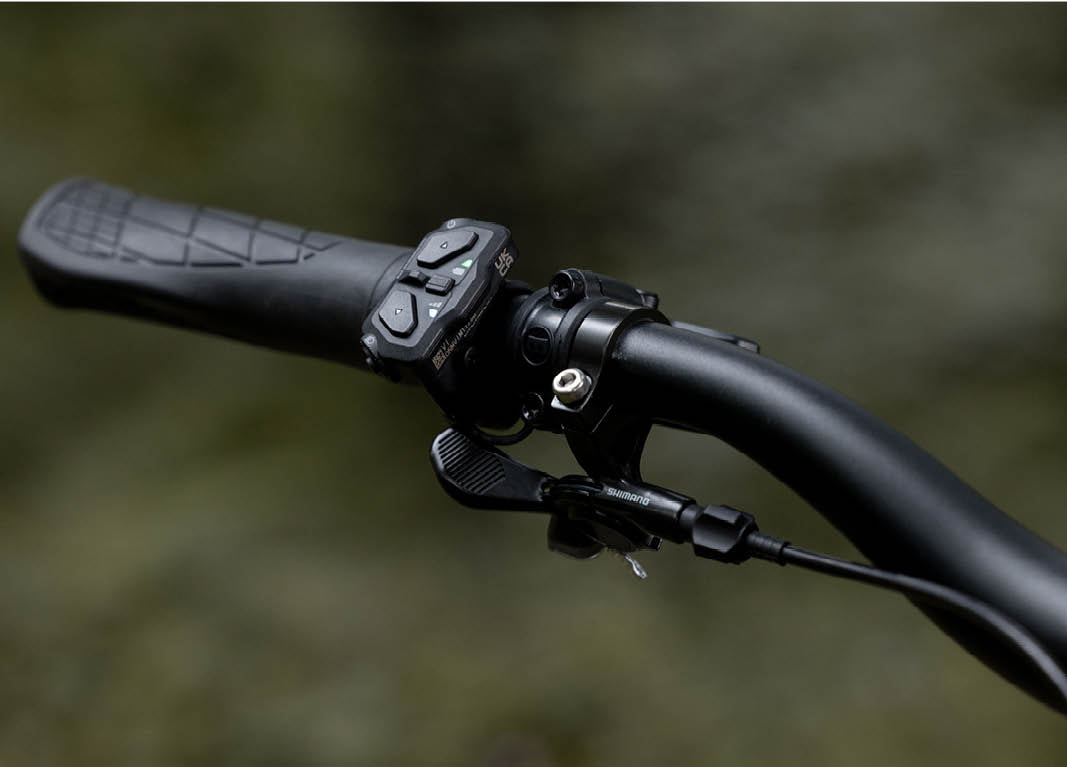

| Remote | EN600-L |
| Charger |
Orbea 2.Generation eBike Smart charger 42V/2-4A |
| Frame |

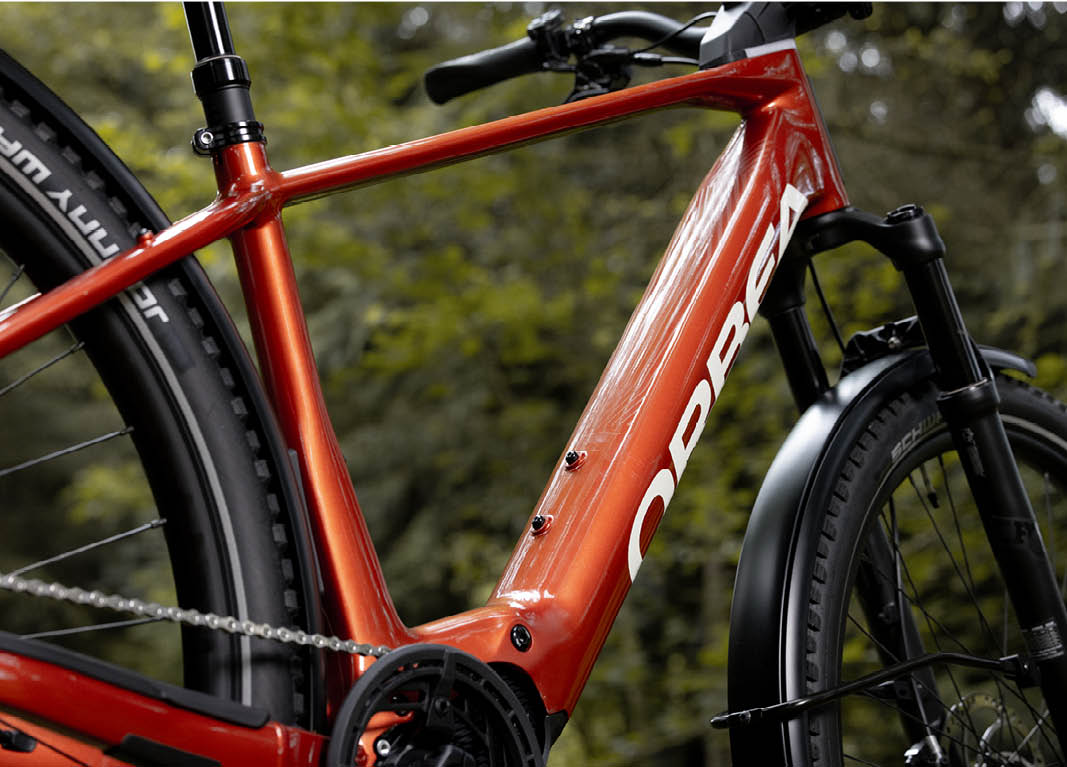

Orbea Kemen Top Bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 |
|---|---|
| Sizes | S: 42.8, M: 44, L: 45.7, XL: 47 |
| Colours | Mars Red/Ivory; Diamond Black; Stoneblue/Burgundy |
| Fork | Fox 34 Float AWL 100 RAIL QR15x110 |
| Wheel Size | 29" |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Handlebar |
Orbea Urban, Integrated Light, Rise 50, Width 760 |
| Shifters |
Shimano XT M8130 Link Glide |
| Cassette |
Shimano CS-LG600 11-50t 11-Speed |
| Crank | Shimano Steps EM600 |
| Rear Derailleur |
Shimano XT M8130 Link Glide SGS Shadow Plus |
| Chain |
KMC eGlide |
| Chainring |
Alloy 40t w/chainguard |
| Brakes |
Magura MT5 E-STOP Hydraulic Disc Easy Route Connection |
| Wheels |
Alloy, Tubeless, 29", 29c, 32H |
| Tires |
Schwalbe Johnny Watts LR, 60-622, Reflective Tape |
| Seatpost |
OC Mountain Control MC22, 31.6mm, Dropper |
| Seatpost Lever | Shimano SL-MT500 |
| Saddle |
Selle Royal Vivo Ergo |
| Pedals |
VP-537 Black |
| Warranty | Drive system 2 years Frame: Lifetime if you register |
| Weight | Approx 22kg |
| Front Light |
Supernova Starstream Pro, High Beam with Orbea integrated, USB-C charging point |
|---|---|
| Rear Light | Supernova TL3 Z |
| Lock | No |
| Carrier Rack |
Orbea RR-02 Alloy, w/MIK HD and MIK Side and Ortlieb QL3.1 system. Max. 30Kg |
| Mudguards |
Curana Apollo Orbit 70mm |
| Kickstand |
Massload rear adjustable |
